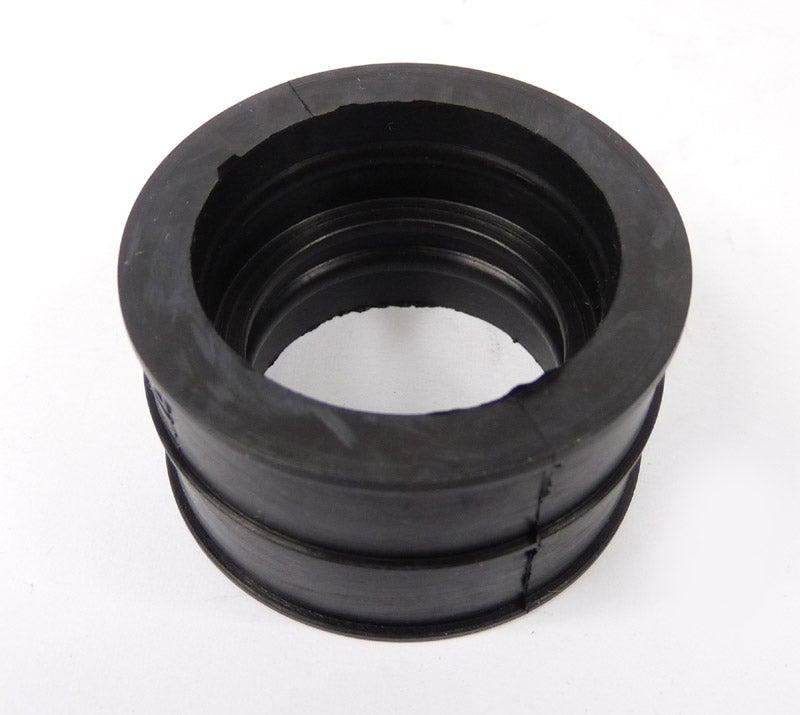

Carb Rubber Stepped PHBH to TMX

MB designed high quality Viton carb mounting rubber.

Simple way to swap carbs if you want to go smaller from say a 34/35mm Mikuni or Amal down to a 28/30mm Dellorto PHBH VHSA 30mm.

Or you can go up from a 28/30mm Dellorto to a 34/35mm Mikuni or Amal.

No need to remove and replace the inlet manifold.

• Large end diameter of spigot is 40mm
• Small end diameter of spigot is 35mm

The rubber measures 30mm in length.

TIPS:

• Make sure both inlet manifold and carb are clean and dry before fitting
• Always use the wide type Jubilee clips
• Do not over tighten the clips
• Always carry a spare
• If your using a Mikuni TMX carb then always fit the spacer ring MRB0854 or the carb rubber will split

Another product specially designed and made from MB.
